• Lubrication Kit

    Lubrication Kit

    This Lubrication kit comes complete with a 2oz. bottle, funnel, 18ga. needle with cover, and 22ga. needle with cover. Works great for applying lubricant to any bearing surface as well as refilling, displacement lubricators, drip feed oilers, and oil cups...

    Add to Cart
  • Grease Cups

    Grease Cups

    Model grease cups machined from brass available in the following sizes. 5-40 thread, 3/8" long x 1/4" diameter. 8-32 thread, 7/16" long x 5/16" diameter. 10-32 thread, 1/2" long x 3/8" diameter.

    $5.50 - $6.00
    Choose Options
  • Oil Cups

    Oil Cups

    Brass oil cups available in 2-56 and 5-40 thread. The 2/56 size is 3/8" long and the 5-40 size is 15/32" long.

    Choose Options

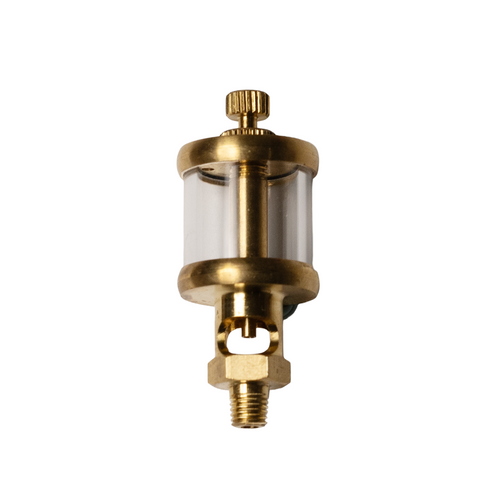

  • Drip Feed Oiler. machined from brass with a 5/8" diameter glass reservoir.

    Drip Feed Oiler

    Drip feed oiler is completely machined from brass with a 5/8" diameter glass reservoir. Each oiler is 1-5/8" overall and comes in either a 3/16-40 or 1/4-40 thread.

    $31.00 - $34.00
    Choose Options
  • Displacement Lubricator

    Displacement Lubricator

    For cylinders from 1/2" up to 2" bore. This lubricator should be attached to the steam chest or fitted to the steam line close to the engine by a tee. Opening a needle valve lets steam pass into the lubricator. Steam condenses in the lubricator and sinks...

    Choose Options
  • Red Wing Lubrication Kit  Red Wing Engine

    Red Wing Lubrication Kit

    A complete lubrication kit for your Air or Water Cooled Red Wing Engine. Lubrication Kit for the Red Wing Air Cooled Engine includes: 1 EA - Drip feed oiler 3 EA - 10-32 Grease cups Lubrication Kit for the Red Wing Water Cooled Engine includes: ...

    $51.00 - $52.00
    Choose Options
